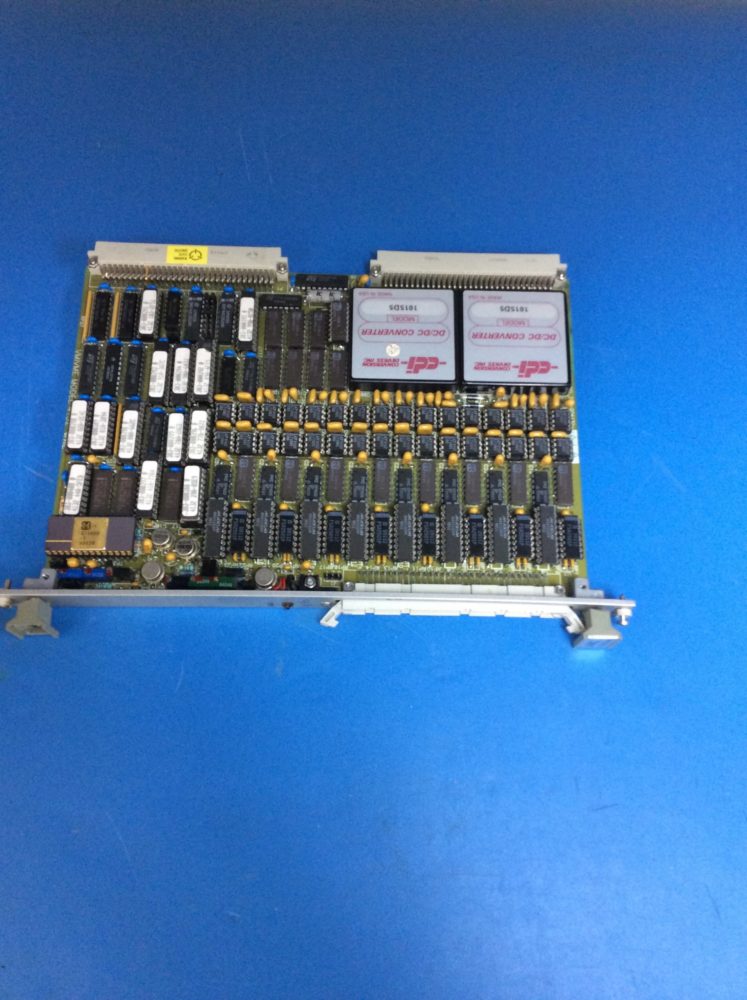

VMIVME4132-011A SALES & REPAIR SERVICES
•
32 analog output channels
—
12-bit D/A converter
—
One S&H for output
—
Output short circuit and transient protected
—
Unipolar (0 to 10 V, 0 to +5 V) or bipolar (
Å}
2.5,
Å}
5,
Å}
10 V)
—
Program-selectable scan rates provide improved response for complex
output functions
—
10 mA outputs
—
Program-controlled online and offline operating modes
•
Built-in-Test on-board
—
Tests 100 percent of active components
—
Effective in both online and offline modes
—
On-board self-test multiplexer and A/D converter
•
Semiconductor output switches do not compromise accuracy
•
0.1
Ω
output impedance
•
On-board
Å}
15 V DC-to-DC conversion
•
Front panel activity LED
INTRODUCTION
—
The VMIVME-4132 analog
output board provides 32 high-quality analog output
channels, which can be programmed with on-board jumpers
to operate in a variety of voltage ranges. All outputs have
12-bit resolution, and can source or sink 10 mA at
Å}
10 V.
For offline testing, the analog outputs can be disconnected
from the external circuits.
