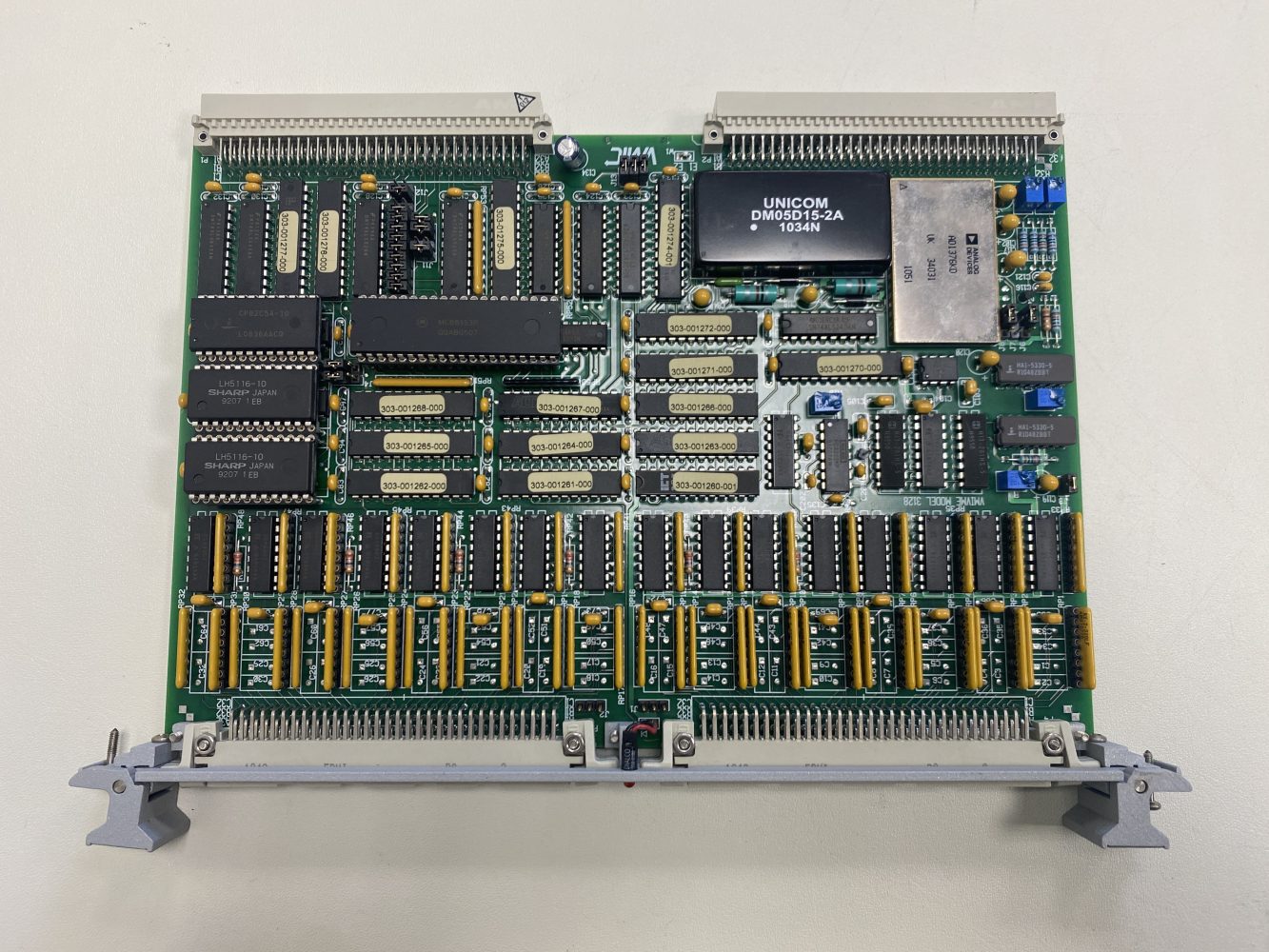

VMIVME3128-000
The VME-3128A scans 16, 32, 48 or 64 channels, continually digitizes all of them and stores the results. Choose from 64 differential or single-ended inputs and program VMEbus interrupts and interval timer to meet the unique requirements of your mission.
Features:
- 64 differential or single-ended inputs
- 14-bit A/D conversion
- 58 kHz conversion rate
- Program-selectable scanning of 16, 32, 48, or 64 channels
- Continually digitizes all input channels & stores the results
- Six operating modes
- Auto scanning mode
- Single channel random polling mode
- Timed burst mode
- Locally triggered burst mode
- Remotely triggered burst mode
- Gain loading mode
- Programmed VMEbus interrupts
- User-programmable interval timer
- Software-programmable gain 1, 10, 100
- External trigger to synchronize multiple boards simultaneously
- Jumper-selectable A/D ranges of 0 to +5, 0 to +10, ±2.5, ±5,
and ±10 V
- Optional low pass filter
- Over voltage protected inputs
- 1,024-word data buffer (16-word deep buffer x 64 channels)
- Selectable output coding
- Powers up in auto-scanning mode with gain of 1
Applications
- Factory automation and instrumentation
- Process control and monitoring
- Laboratory instrumentation
- Machine monitoring
- Data acquisition and control
Scanning 14-bit Analog-to-Digital Converter Board with Programmable Gain Memory
VME-3128A-100
