CPCI5579
VMICPCI-5579
VMICPCI-5579-510

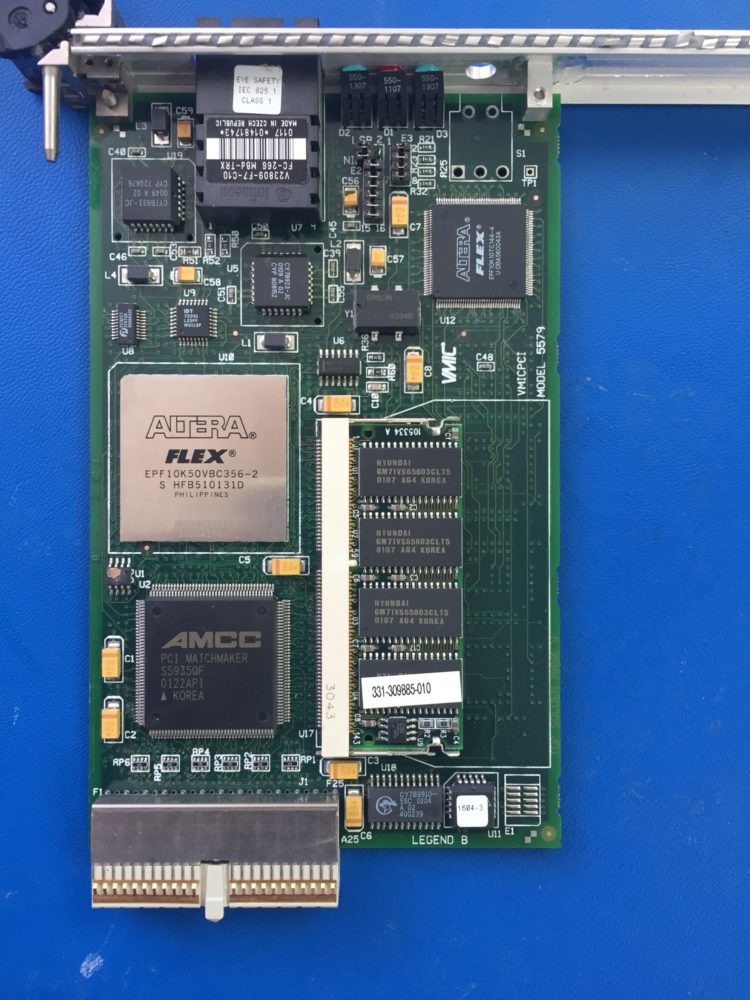

The VMICPCI-5579 is a member of a high-performance, daisy-chained, fiber-optic network. Data is transferred by writing to on-board global RAM. The data is automatically sent to the location in memory on all Reflective Memory boards on the network.
- Real-time network for computers with CompactPCI®, PCI, or PMC interfaces
- Up to 64 Mbyte of Reflective Memory with network data rate up to13.4 Mbyte/s
- High-speed, easy-to-use fiber-optic network (270 Mbaud serially)
- Data written to memory in one node is also written to memory in all nodes onthe network
- Up to 1,000 m between nodes and up to 256 nodes
- Data transferred at 13.4 Mbyte/s without redundant transfer
- Data transferred at 6.7 Mbyte/s with redundant transfer
- Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
- Error detection
- Redundant transmission mode for suppressing errors
- No processor overhead
- No processor involvement in the operation of the network
- D32:D16:D8 memory access
- Single 3U CompactPCI board with optional 6U front panel
- PCI target data bursts supported with 33 Mbyte/s transfer rates
- PCI master DMA controller. DMA transfer rates of 132 Mbyte/s maximum and22 Mbyte/s sustained.
- Configurable endian conversions for multiple CPU architectures on the network
