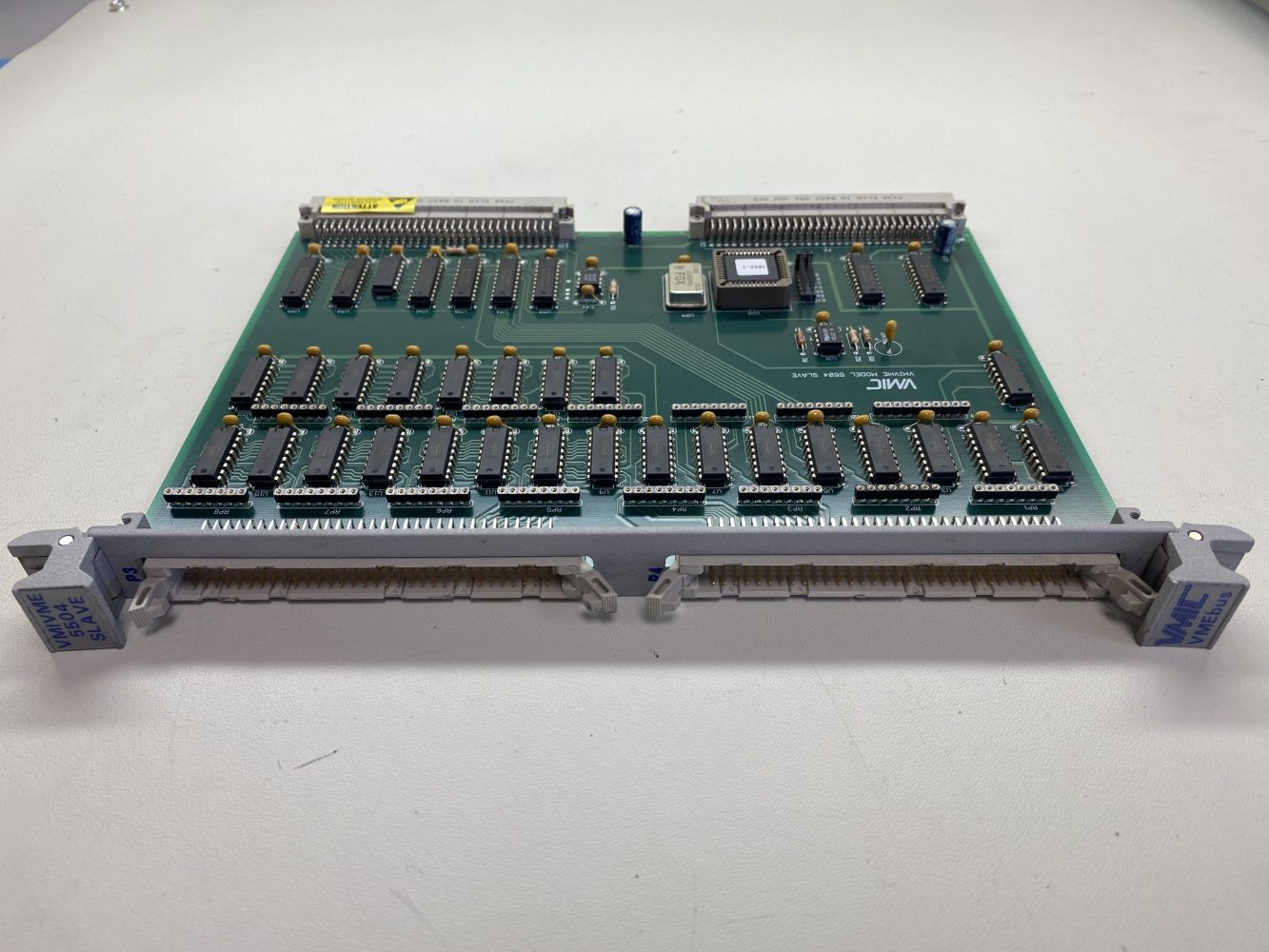

VMIC VMIVME-5504 SLAVE VME MODULE
The VMIVME-5504 is designed to use a single master repeater board which may be connected to as many as 16 slave repeater boards using a single pair of cable assemblies with cable taps. This configuration allows VMEbus slave I/O boards residing in one VMEbus chassis to be controlled by a VMEbus master residing in another chassis. The VMEbus chassis in which VMEbus masters reside is referred to as a master chassis, while the VMEbus slave boards reside in a slave chassis (no master in slave chassis).
- Link includes one master board, one slave board, and a wide variety of cable length options
- Supports 16-bit addressing
- Supports 8-, 16-, and 32-bit data transfers
- Supports the configuration of large I/O systems
- Supports up to 1,000-ft cables
- Differential line drivers and receivers provide ±7 V common-mode noise rejection
- Multidrop capability reduces cost
