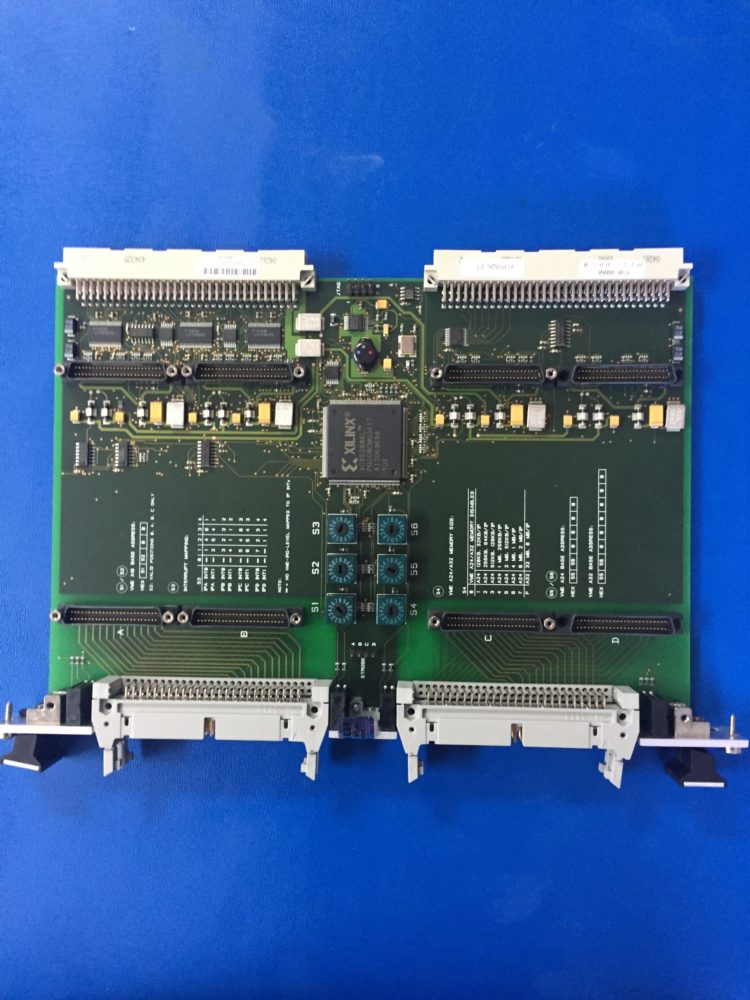

SBS VIPC626 CARRIER BOARD
The VIPC626-ET is a 6U VMEbus carrier for up to four single-size or two double-size IndustryPack (IP) modules that allows you to build modular, flexible and cost-effective I/O solutions for a variety of applications such as process control, medical systems, telecommunication and traffic control.
Four 50-pin, 0.1 inch flat ribbon cable connectors mounted in the front panel of the VIPC626-ET provide access to all IP I/O lines. Status indicators for IP access, +5V and +/-12V are provided.
A set of 16-position rotary switches allows easy configuration of VME Short I/O and Memory addresses. Interrupt routing from the IP slots to the VME IRQs can be accomplished in two ways: programmable by software or selection of predefined sets by a rotary switch.
The IP power lines are fuse protected by self healing fuses and RF filtered. The operating temperature range is -40°C and +85°C.
