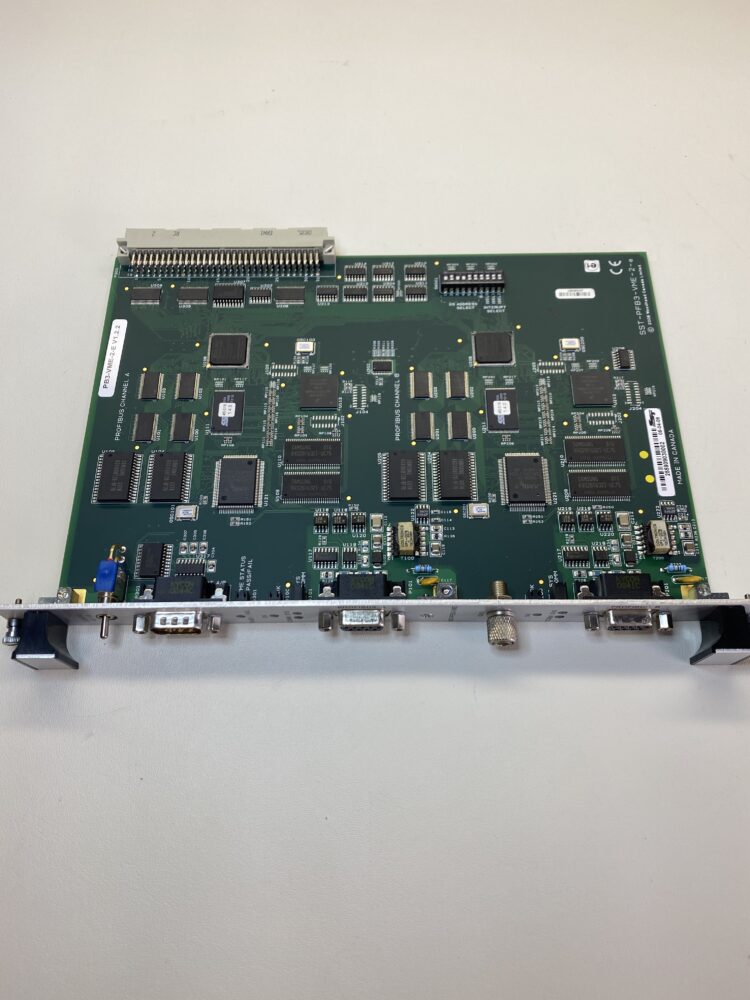

SST-PFB3-VME-2
The PFB3-VME Card is a VME interface for communication with Profibus networks. Each channel can:
- Act as a DP master
- Act as a DP slave
- Send and receive FDL (layer 2) messages
- Support Master Class 1 and Master Class 2 messaging
- Support simultaneous operation in all of the above modes
- Support the standard Profibus baud rates of 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M and 12M baud
- Support 16-bit transfers (VME D16) with both VME A24 (standard) and A16 (short I/O) address transfers
