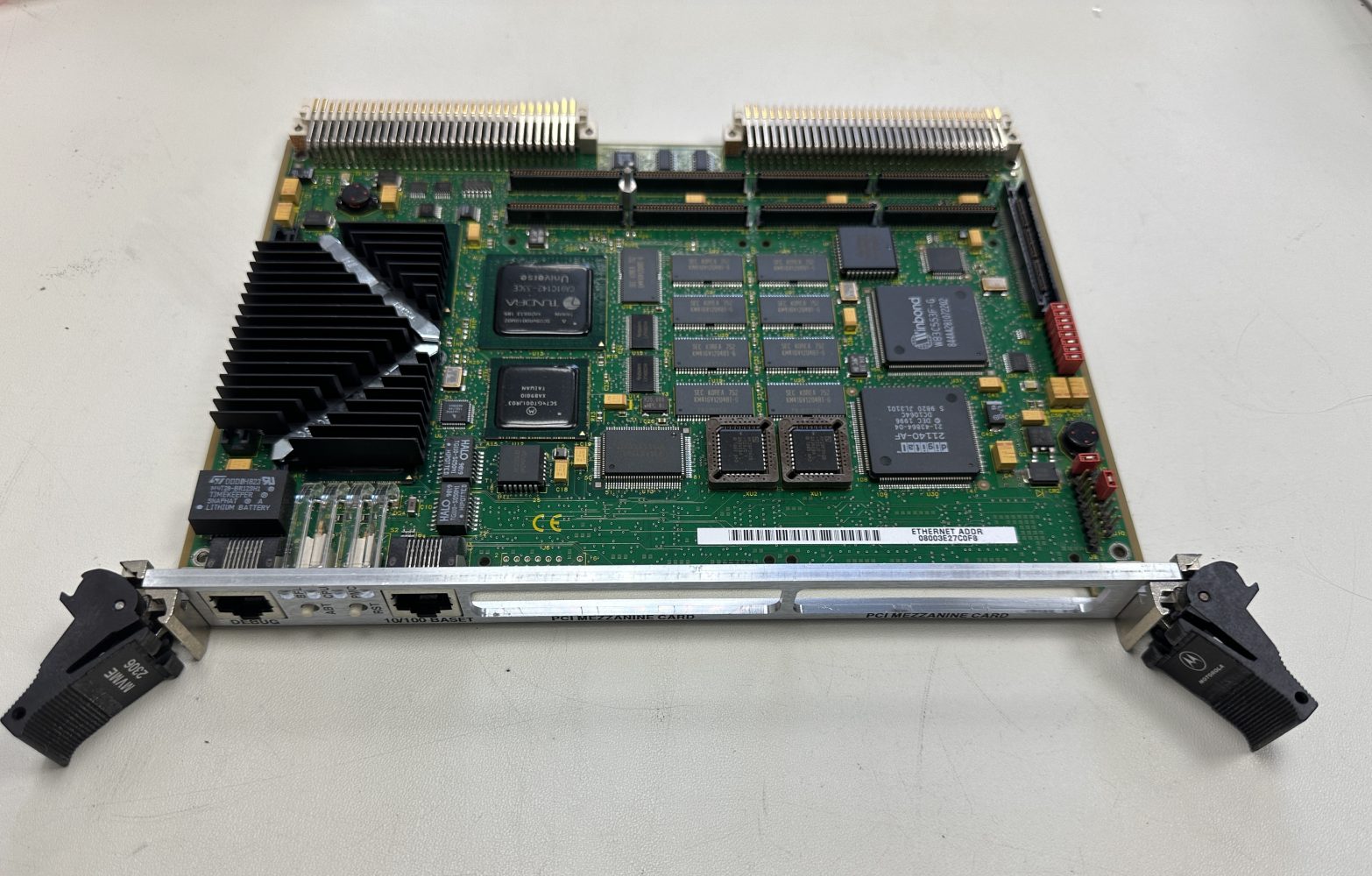

The MVME2306 series of VME board provides the performance of Motorola’s PowerPlus Architecture and the ability to fully customize your application with 2 PCI Mezzanine cards. MVME2306 utilizes the PowerPC604 32 bit processors, PCI bus for on board peripherals, processor memory but to PCI bus bridge and VME interface.
F e a t ur e s
PowerPC 603 or PowerPC 604 32–bit microprocessor
L1 cache—16KB/16KB PowerPC 603 or 32KB/32KB PowerPC 604
16MB to 128MB of on-board ECC DRAM
Two 32-pin PLCC/CLCC sockets for Flash memory; up to 1MB capacity for on-board firmware or user- specified requirements
4MB on-board Flash memory for user-specified requirements
On-board debug monitor with self- test diagnostics
Two IEEE P1386.1 compliant
32/64-bit PMC expansion slots with front panel and P2 I/O
64-bit PCI expansion mezzanine connector
8K x 8 NVRAM and time-of-day clock with replaceable battery
backup
One asynchronous serial debug port
Four 32-bit timers, one 16-bit timer, one watchdog timer
Ethernet transceiver interface with 32-bit PCI local bus DMA,
10/100Mb/s with auto-negotiate
Part Number Description
MVME2301 200 MHz MPC603, 16MB ECC DRAM, 5MB Flash
MVME2302 200 MHz MPC603, 32MB ECC DRAM, 5MB Flash
MVME2303 200 MHz MPC603, 64MB ECC DRAM, 5MB Flash
MVME2304 200 MHz MPC603, 128MB ECC DRAM, 5MB Flash
MVME2305 300 MHz MPC604, 16MB ECC DRAM, 5MB Flash
MVME2306 300 MHz MPC604, 32MB ECC DRAM, 5MB Flash
MVME2307 300 MHz MPC604, 64MB ECC DRAM, 5MB Flash
MVME2308 300 MHz MPC604, 128MB ECC DRAM, 5MB Flash
