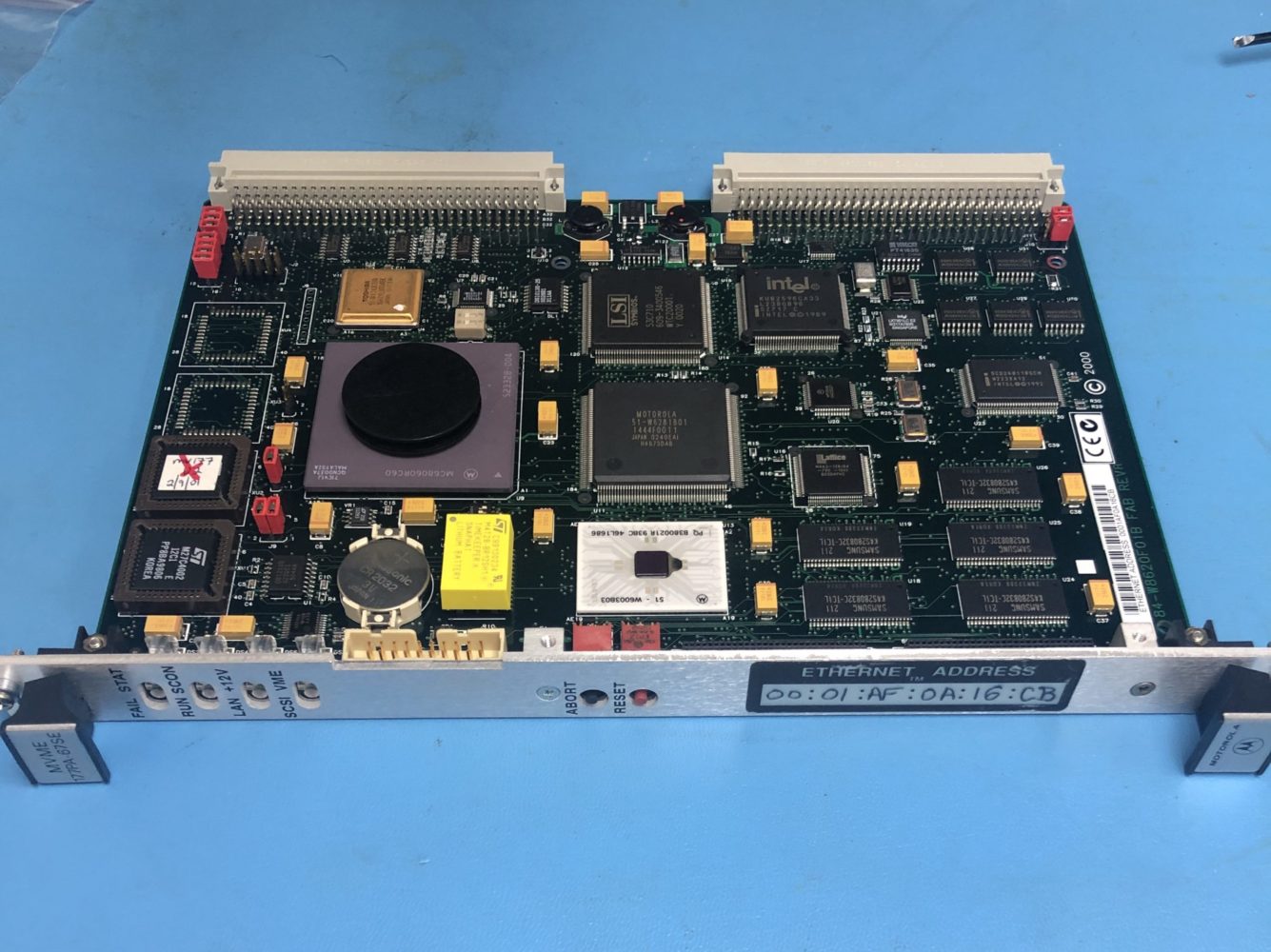

MVME177PA-67SE
- 50 or 60 MHz MC68060 32-bitmicroprocessor with 8KB of cache, MMU,and FPU
- Full 32-bit master/slave VMEbus interface
- High-performance DMA supports VMEbus D64 and local bus memory burst cycles
- 16, 32, 64 or 128MB configurable SDRAM, with ECC option
- 128KB SRAM with battery backup
- On-board SCSI and Ethernet interfaces
- 4MB of Flash ROM
- Up to 2MB on-board ROM/EPROM
- Four serial ports (EIA-232-D) and one parallel port
- Four 32-bit timers and one watchdog timer
- 8KB of NVRAM with real-time clock/calendar
- Remote Reset/Abort/Status functions
- Completely programmable for maximum integration flexibility
- Low power consumption—less than 20 watts typical
Combination of superscalar microprocessor and world-class quality VME products. The company that pioneered the VMEbus single-board computer has added new dimensions in performance and functionality. Motorola’s third-generation single-board computer, the MVME177P, upholds the tradition by combining a superscalar MC68060 microprocessor with the feature flexibility and world class quality found only in Motorola VME products. The MVME177P’s compatibility with existing M68000 family hardware andsoftware allows users to realize RISC performance levels while protecting their chassis, peripheral, specialized I/O, and software investment. The MVME177P makes an ideal solution for scientific, industrial, and high-endmonitoring and control applications. The inclusion of the new “Petra” application-specific integrated circuit (ASIC), which replaces functions formerly implemented in the MCECC chip, improves the performance of the memory subsystem. Memory configuration switches enable the customer to tailor memory size for applications requiring smaller memory configurations.
