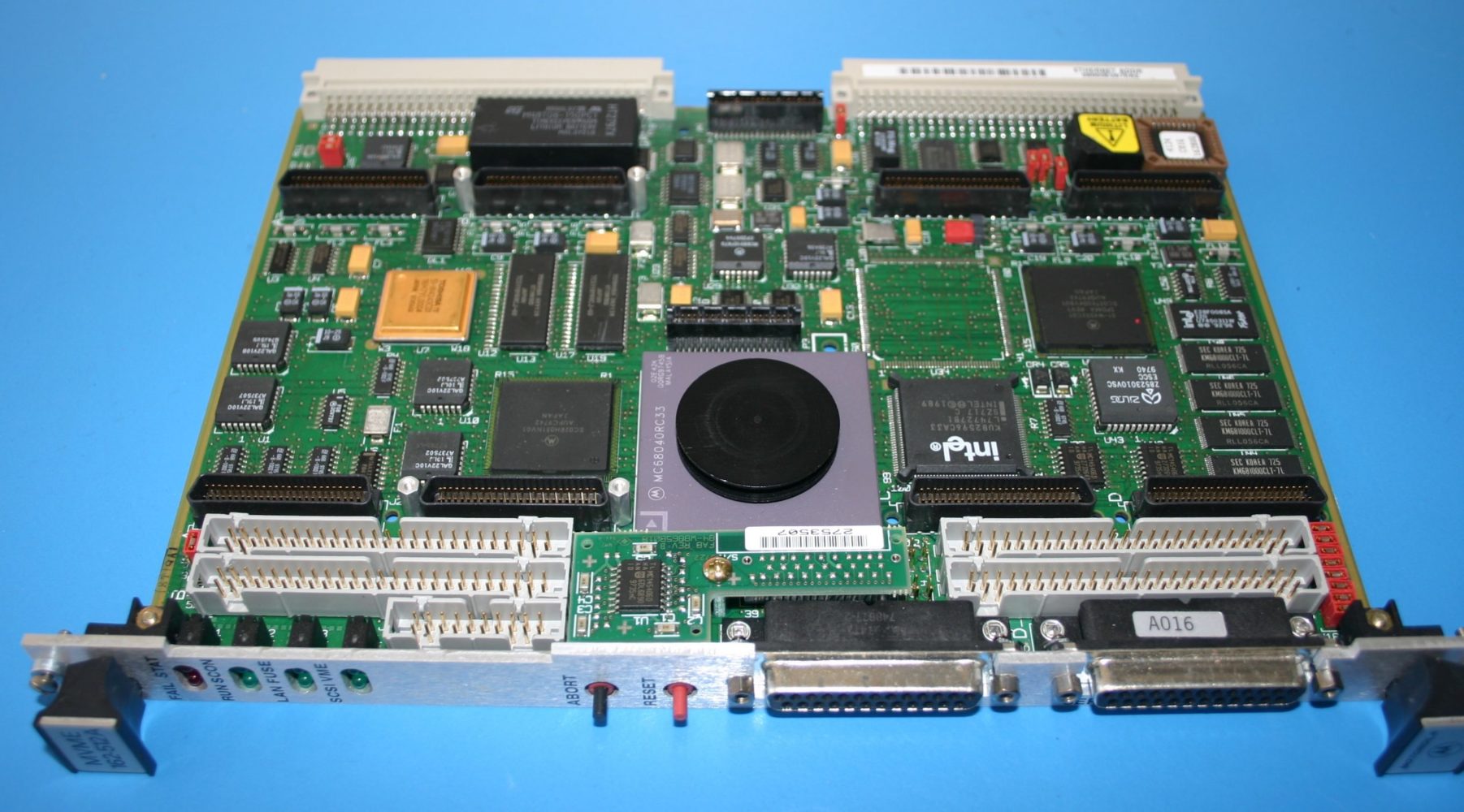

Features
- 32 MHz MC68040 enhanced 32-bit microprocessor with 8KB of cache, and MMU and FPU
- Optional 25 MHz MC68040 32-bit microprocessor with 8KB of cache, MMU, and FPU
- Optional 25 MHz MC68LC040 enhanced 32-bit microprocessor with 8KB of cache and MMU
- A32/D64 VMEbus master/slave interface with system controller function
- High-performance DMA support for VMEbus D64 and local bus memory burst cycles
- 4, 8 or 16MB of shared DRAM
- 512KB SRAM with battery backup
- 1MB Flash memory for on-board monitor/debugger or user installed firmware
- 8K x 8 NVRAM and time-of-day clock with battery backup
- Two serial communication ports, console port as EIA-232-D DTE and second port user configurable for EIA-232-D/EIA-422 (V.36) DTE/DCE
- Four 16- or 32-bit IndustryPack® ports with one DMA channel per port
- Six 32-bit timers (four without VMEbus) and watchdog timer
- Optional SCSI bus interface with 32-bit local bus burst DMA
- Optional Ethernet transceiver interface with 32-bit local bus DMA
- One 32-pin PLCC EPROM socket
- Four-level requester, seven-level interrupter, and seven-level interrupt handler for VMEbus
- Remote RESET/ABORT/STATUS control functions
- On-board debugger and diagnostic firmware
