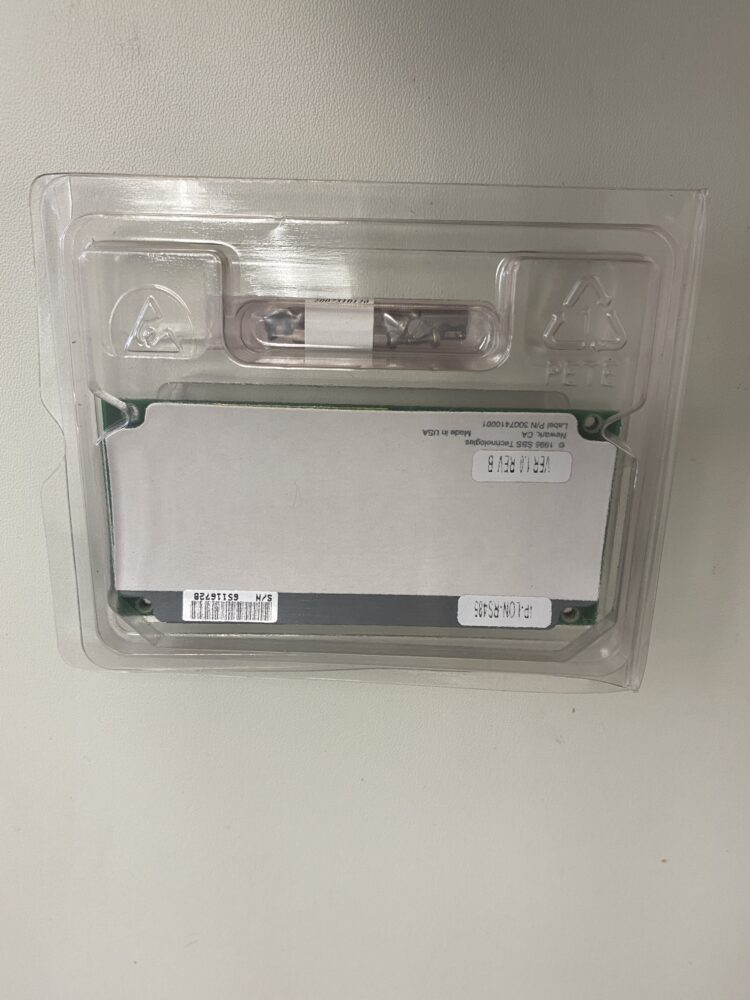

IP-LON-RS485
The communication is handled via a 4Kbyte Dual Port RAM. A 32Kbyte EPROM is used to store the protocol firmware of the NEURON Chip 3150 and the application program. All modules have the protocol firmware and the MIP/DPR host interface software preinstalled
The TIP813 is an IndustryPack® compatible module and provides a complete LON interface using the NEURON Chip 3150.
The communication is handled via a 4Kbyte Dual Port RAM. A 32Kbyte EPROM is used to store the protocol firmware of the NEURON Chip 3150 and the application program. All modules have the protocol firmware and the MIP/DPR host interface software preinstalled.
Four kinds of on board physical interface are available:
• The TIP813-10 supports standard RS485 and power line interface
• The TIP813-20 supports a transformer-coupled 1.25Mbit interface
• The TIP813-21 supports a transformer-coupled 78kbit interface
• The TIP813-30 supports the free topology twisted pair interface based on the ECHELON FTT-10A transceiver
The complete network communication port of the NEURON Chip is routed to the IndustryPack I/O connector of the TIP813-10. This allows high flexibility to interface other physical media, i.e. optically isolated RS485 or power line interface by a separate transition module. The TIP813-TM-10 transition module with the TIP813-10 supports optically isolated standard RS485 on DB-9 connector.
