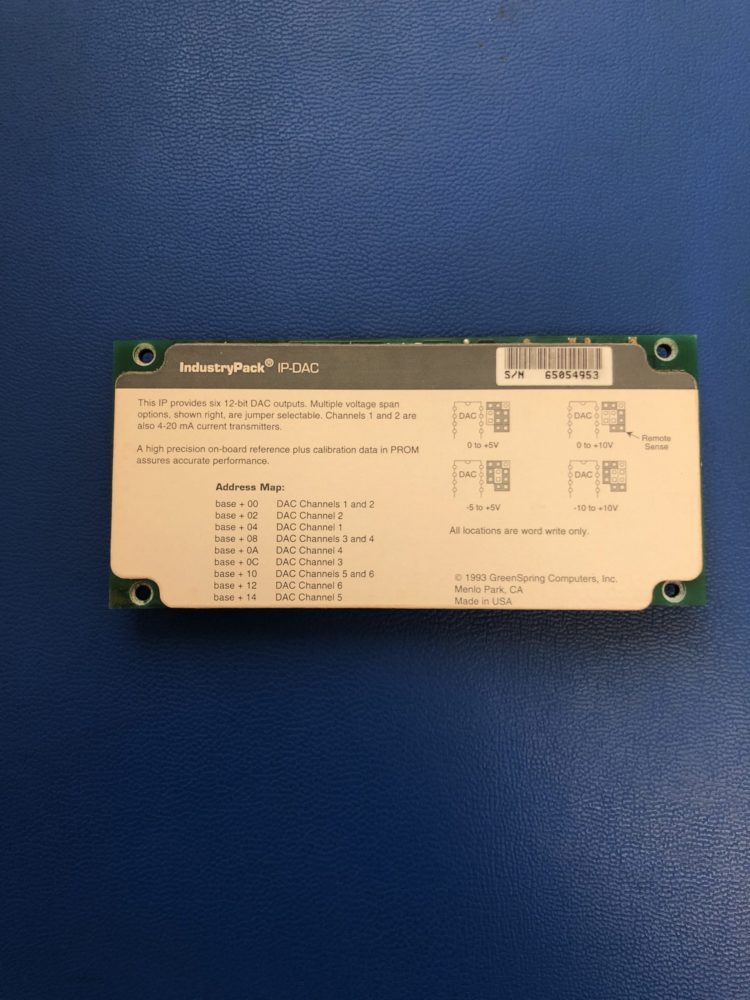

IP-DAC
Six-Channel 12-Bit DAC IndustryPack® Application Information
The IP-DAC provides six channels of 12-bit digital to analog conversion on a single-wide IndustryPack®. Any one of five output ranges may be selected individually for each DAC channel
via shunts. A single high-precision (3ppm/C) reference provides exceptional stability. Alternatively, an external reference may be provided.
Each of the six channels is factory calibrated and the offset and gain correction factors are stored in the ID PROM. Software may use this calibration information to provide output voltages accurate to within one LSB.
Key Features
- Six 12-bit DACs on a single-wide IndustryPack®
- Output ranges of -5, -10, 5, 10, ±2.5, ±5, and ±10 V individually selectable per channel
- 20 us settling time for 10 V output step
- Factory-calibrated; data in ID PROM
- High-precision reference
- Sense input for each channel
- Simple 16-bit software interface
