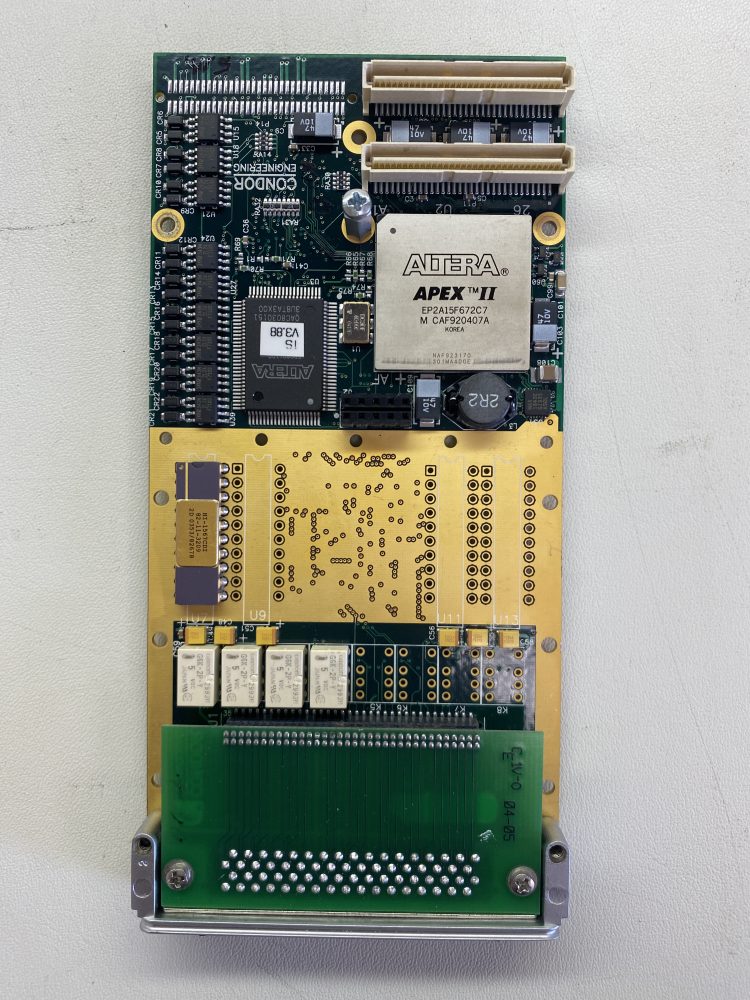

CONDOR ENGINEERING QPMC-1553-1S PMC CARD
The QPMC-1553-1S provides the highest level of performance, flexibility and interface density for MIL-STD-1553A/B on a PMC (PCI Mezzanine Card) module. The QPMC-1553 is integrated with powerful software that reduces development time. All 1553 databus functionality is supported from our advanced API (Application Programming Interface). Standard features include 1 MB RAM per channel, real-time bus playback, aperiodic message insertion, error injection/detection, conditional BC branching, 45-bit timetags and “one-shot” BC operation. Options include IRIG-B Receiver/Generator, ruggedized, extended temp and conductive cooling configurations. The Bus Monitor mode provides 100% bus monitoring of a fully loaded 1553 buses.
QPMC-1553-1S Configuration:
• Single Channel
• Fixed Voltage PMC Interface
• Rear I/O (P14) Configuration
