For a quote on our Cisco Products please contact us at sales@globaltechsourcing.com or cal 603-294-4960

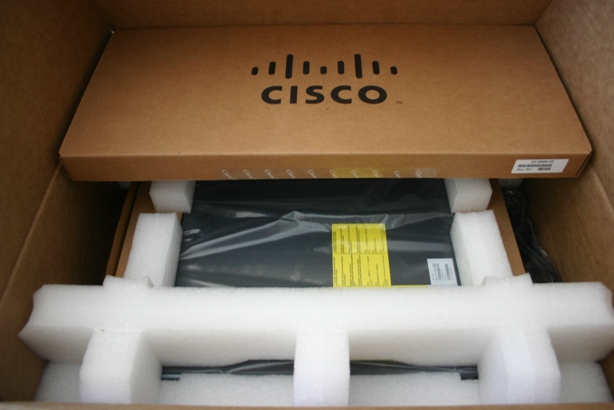

New in original box DS-C9134-K9
| Device Type | Switch – 24 ports -stackable |
| Enclosure Type | Rack-mountable – 1U |
| Fibre Channel
Ports |
FC-AL, FC-AL-2, FC-BB,FC-DA, FC-FCP, FC-FCP-2, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH,FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3,FC-Tape, FC-VI, FC-SP, FC-BB-2, FC-PI-2 24 x 4Gb Fibre Channel + 8 x SFP Ports on Demand |
| Remote Management Protocol | RMON, Telnet, SNMP 3 |
| Features | Syslog support, AccessControl List (ACL) support |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Approximate Dimensions(WxDxH) | 17.2 in x 18.9 in x 1.8 in |
| Approximate Weight | 19.8 lbs |
Product Features
The Cisco MDS 9134 Multilayer Fabric Switch, designed formidrange to large enterprise customers, provides line-rate 4-Gbps and10-Gbps ports based on a purpose-built "switch-on-a-chip"application-specific integrated circuit (ASIC) with high performance,high density, and enterprise-class availability. The switch offersoutstanding value by providing flexibility, high-availability,security, and ease of use at an affordable price in a compactone-rack-unit (1RU) form factor. With the flexibility to expand from 24to 32 ports in 8-port increments and optionally activate 2 10-Gbpsports, the Cisco MDS 9134 offers the densities required fortop-of-the-rack switch and edge connectivity in enterprise SANs. TheCisco MDS 9134 offers non-blocking architecture, with all 32 4-Gbpsports and the 2 10-Gbps ports operating at line rate concurrently.
The 10-Gbps ports support a range of optics for connection tothe Cisco MDS 9000 family core using 10-Gbps Inter-Switch Link (ISL)connectivity. The Cisco MDS 9134 can also be stacked using copper CX4X2 transceivers to cost effectively offer up to 64-port densities. TheCisco MDS 9134 supports quick configuration and task wizards that allowit to be deployed quickly and easily in networks of any size.
