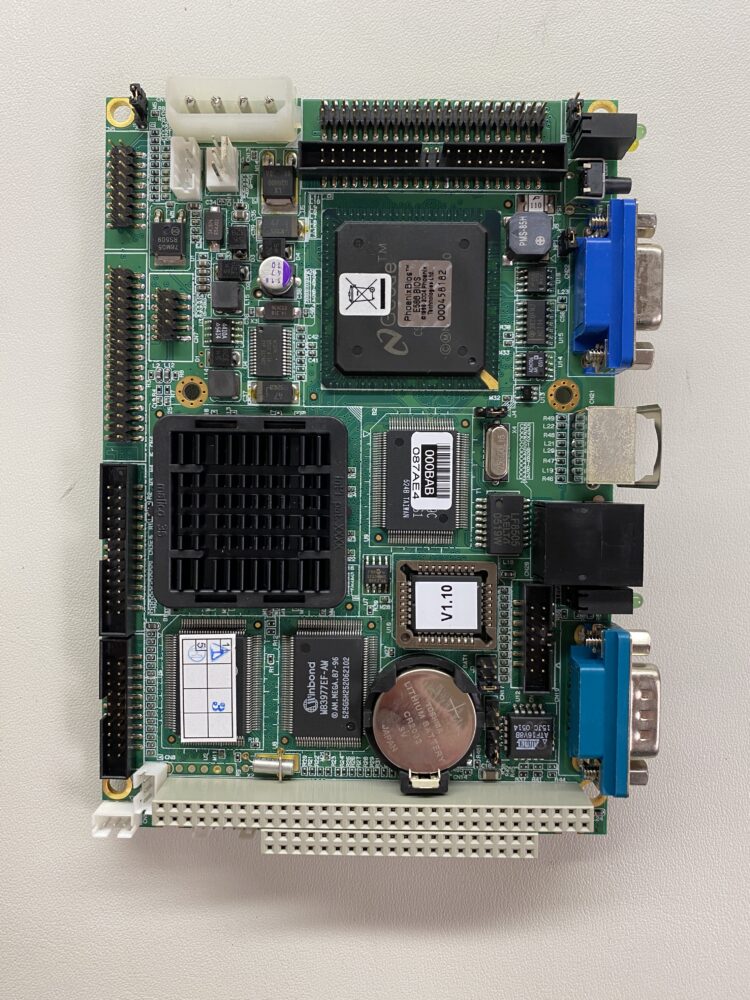

Advantech PCM-5825F Single Board Computer with NS Geode CPU, 4COMs VGA/LCD, Ethernet, Audio Interface
Specifications
| System Chipset | AMD CX 5530 |
|---|---|
| Form Factor | PCI |
| Ethernet Chipset | Realtek RTL8139C |
| Video Chipset | AMD CX5530 |
| Audio | NS CX 5530, AC’97 2.0 compliant |
| Battery | Lithium 3 V/196 mAH |
| BIOS | AWARD 256 KB Flash BIOS |
| Chipset | NS CX 5530 |
| Controller | RealTek 8139C |
| CPU | Onboard AMD Geode processor GX1-300 MHz processor |
| Dimensions | 145 mm x 102 mm (5.7″ x 4″) |
| Environment | Operating Temperature: 0 ~ 60° C (32~140° F) Operating Humidity: 0% ~ 90% Relative Humidity, non condensing 0.75 kg (weight of total package) |
| Expansion Interface | PC/104 |
| Input | IEEE 802.3u 100BASE-T Fast Ethernet compatible Built-in boot ROM in Flash BIOS |
| IR Interface | 115 Kbps, IrDA 1.0 compliant |
| MIO | 1 x EIDE (Ultra DMA33), 1 x FDD, 1 x K/B, 1 x Mouse, 1 x RS-232/422/485, 1 x RS-232, 1 x LPT |
| On-board EIDE | Chipset: AMD CX 5530 Memory Size: 1-4 MB UMA shared memory Resolution: Up to 1024 x 768 @ 24 bpp non-interlaced CRT and 1024 x 768 @ 18 bpp TFT LCD display (supports 3.3 V LCD) LCD Interface: 18-bit TTL for TFT LCD only |
| Processor | Geode GX1 300 |
| SSD | Supports CompactFlash™ card |
| System Memory | SDRAM SODIMM x 1, Max. 256 MBResolution Up to 1024 x 768 @ 24 bpp non-interlaced CRT and |
| USB | 2 USB ports, USB 1.0 compliant |
| Watchdog Timer | 1 – 62 sec, 62 level timer intervals, system reset or IRQ11 |
Features
- 10/100BASE-T Ethernet
- 18-bit TFT LCD interface
- 4 COM ports share one IRQ
- AC’97 V 2.0 Audio
- Compact and powerful at less than 8 Watts power consumption
