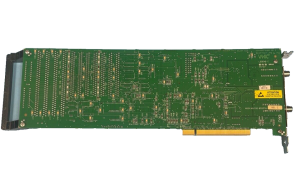

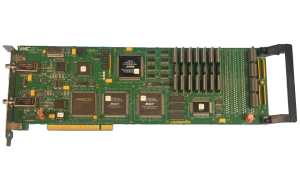

Abaco Systems / VMIC VMIPCI-5576-001 Fiber-Optic Reflective Memory w/ Interrupts

PROVIDING SOLUTIONS FOR KEEPING YOUR LEGACY EQUIPMENT THRIVING

Model Number:VMIC VMIPCI-5576-001
Part Number:VMIC VMIPCI-5576-001

Overview

VME-5576 Reflective Memory interface allows data to be shared between up to 256 independent systems (nodes) at rates up to 6.2 Mbyte/s. Each Reflective Memory board may be configured with 256 Kbyte to 1 Mbyte of on-board SDRAM. The local SRAM provides fast Read access times to stored data. Writes are stored in local SDRAM and broadcast over a high-speed fiber-optic data path to other Reflective Memory nodes. The transfer of data between nodes is software transparent, so no I/O overhead is required. Transmit and Receive FIFOs buffer data during peak data rates to optimize CPU and bus performance to maintain high data throughput.

  • Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
  • Data transferred at 3.2 Mbyte/s with redundant transfer
  • Data transferred at 6.2 Mbyte/s without redundant transfer
  • Up to 2,000 m between nodes and up to 256 nodes
  • Data written to memory in one node is also written to memory in all nodes on the network
  • High-speed, easy-to-use fiber-optic network (170 Mbaud serially)
  • Error detection
  • Redundant transmission mode for suppressing errors

We do Repairs

GlobalTech offers comprehensive VME repair services for current and legacy electronic equipment. Contact us for your Abaco Systems / VMIC VMIPCI-5576-001 Fiber-Optic Reflective Memory w/ Interrupts repair evaluation/quote.

All VMIPCI repairs are done in an ISO 9001 compliant ESD safe environment and we utilize only AS5553 compliant components. GlobalTech offers targeted 14 day turn around on ABACO repairs and also can provide advance exchange for time critical situations. Our VME products and repairs are all guaranteed with a 1 year warranty.
